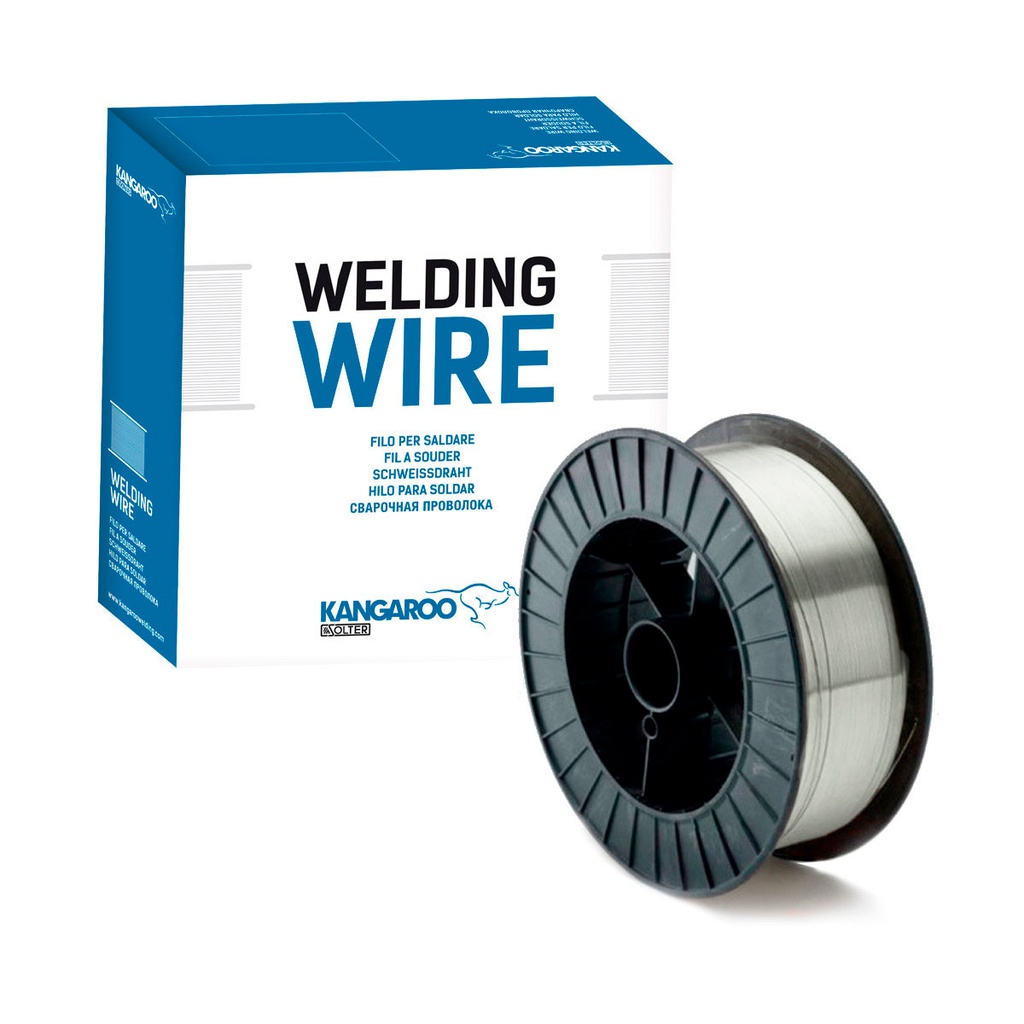

Hilo sólido para soldadura de aceros inoxidables austeníticos tipo 316 y 316 L. Bajo contenido en carbono. Excelente resistencia a la corrosión. Recomendado con riesgo de corrosión intergranular, en mediso ácidos y soluciones clorhídricas.
APLICACIÓN:
EN: X 2 CrNiMo, X 2 CrNiMoN, X 5 CrNiMo, X 6 CrNiMo, X 6 CrNiMoTi, X 10 CrNiMoTi, X 6 CrNiMoNb, X 10 CrNiMoNb,
OTROS: 1.4404, 1.4406, 1.4429, 1.4435, 1.4408, 1.4401, 1.4571, 1.4573, 1.4580, 1.4581, 1.4583, 1.4436, 1.4420,
CLASIFICACIÓN
|
|
---|---|
AWS | 5.9: ER 316LSi |
EN ISO | 14343: G 19 12 3 L Si |
DIN | 8556 SG X 2 CrNiMo 19 12 |
Wrkf. | 1.4430 |
COMPOSICIÓN QUÍMICA (%)
|
|
Si | 0.8 |
S | <0.020 |
P | <0.020 |
Ni | 12.5 |
Mo | 2.5 |
Mn | 1.4 |
Ferrita | 5-10 |
Cr | 19 |
C | 0.02 |
PROPIEDADES MECÁNICAS
|
|
Límite Elástico (N/mm2) | >350 |
Alargamiento 5d (%) | 30 |
Carga Rotura (N/mm2) | >510 |
Resiliencia Charpy V +20 ºC (J) | 80 |
PARÁMETROS DE SOLDADURA
|
|
Diámetro | 1.2 |
Intensidad de corriente (A) | 150-280 |
Voltaje de Arco (V) | 20-33 |
Gas protector | Argón 100% |
Tipo de corriente | DC +/- |
POSICIONES DE SOLDADURA
|
|
Posiciones |
|
CERTIFICACIONES
|
|
Certificados |
|
